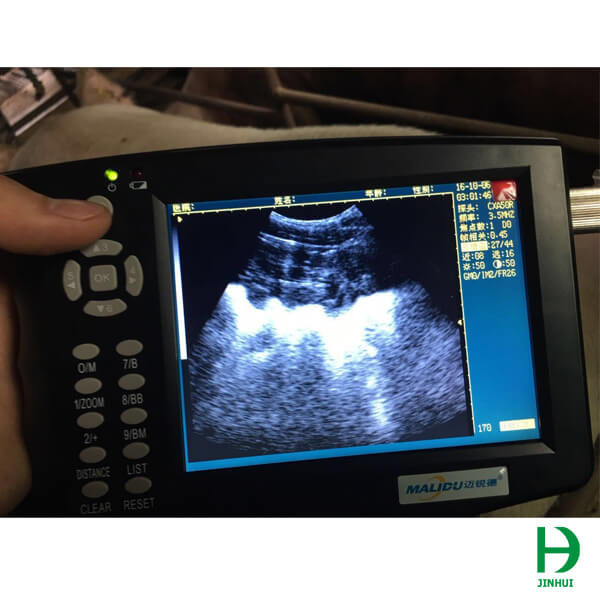

Animal portable ultrasound scanner MD8200V

  • Model: MD8200V
  • Probe(Standard Configuration): 3.5MHz Mechanical sector
  • Scanning Depth(mm): 60-190
  • Monitor Size(inch): 5.6 inch TFT-LCD
  • Image Magnification: X1.0, X1.2, X1.5, X2.0
  • Display modes: B, B+B, B+M, M

We're here to help:

Easy ways to get the answers you need.

share with :
  • cattle ultrasound machine
  • ultrasound machine portable
  • portable ultrasound equipment
Main Products
COMPREHENSIVE FARMING SOLUTION
CHICKEN FARMING EQUIPMENT
PIG FARMING EQUIPMENT
SHEEP FARMING EQUIPMENT
CATTLE FARMING EQUIPMENT
FISH FARMING EQUIPMENT
SPECIAL FARMING EQUIPMENT
OTHER FARMING EQUIPMENT
FEED ADDITIVE PRODUCTS
FEED MACHINE
VETERINARY ULTRASOUND MACHINE
Contact Us
  • Contact: Rita Li
  • Tel: +86 371 5517 0327
  • Phone: +86 181 3782 2989
  • Email: jinhuizonghe@zzjhny.com
  • Add:Modern agricultural research&development base of Henan Province,China.
  • Specifications
  • Technical Data
  • Inquiry
■ Specifications
Portable ultrasound scanner can meet the sheep,pig cattle,horse,dog,cat,rabbit measurement needs.provide effective help to scientific research, teaching, livestock production.


Functions of portable ultrasound machine:
1.Test pregnant;
2.Estimates of births;
3.Monitoring fetal development situation;
4.Automatically calculate the heart rate;
5.Disease diagnosis;
6.Gestational age calculation.

Standard accessories:Host,adapter,battery,CXA50R / 3.5MHZ convex array,user's guide,power cable,coupling agent 250ml.
Optional accessories:LNA64 / 6.5MHZ rectum,CXA20R / 5.0MHz micro convex probe,LNA40 / 7.5MHz high-frequency linear array probe,Video printer,Application Software (CD),High-speed USB cable.








■ Technical Data

Parameter:

Model EC6600AV veterinary equipment for pig pregnancy test
Probe(Standard Configuration) 3.5MHz Mechanical sector
Scanning Depth(mm) 60-190
Resolution(mm) Lateral ≤4(depth≤80) ≤3(80<depth≤130)
Axial ≤2(depth≤80)
Blind area (mm) ≤8
Geometric
position
Precision (%)
Horizontal ≤20
Vertical ≤10
Monitor Size(inch) 5.6 inch TFT-LCD
Display modes B, B+B, B+M, M
Gray Scales 256
Image Magnification X1.0, X1.2, X1.5, X2.0
Faked color display 4
Image conversion up/down, left/right
M Scanning Speed 2s /4s / 6s /8s selectable
Probe Frequency 2.5MHz/3.5MHz/5MHz selectable
Measurement distance, circumference, area, heart rate, gestation age
Comment case number, age, gender
Video Output connected to external video display device and printer
USB2.0 port connected to computer
Image Storage 128
Cine-loop ≥500
Battery Capacity 2200mAh
Power Consumption(Main Unit) 25W
Power Consumption(Adapter) 45W
Weight ≤1kg(probe excluded)


Probe type CXA50R/3.5MHz LNA40/7.5MHz CXA20R/5.0MHz LNA64/6.5MHz
Depth(mm) 90~240 40~90 80~150 50~120
