Automatic Egg Collection System

  • Paint Thickness:: ≥0.05mm
  • Rated Power:: 0.75~3.0KW
  • Egg collection ability:: >3000 PIECES/HOUR
  • Source Type: AC,3-Phase Source
  • size: (2.2-2.8)*(1.0-1.5)*(2.0-2.6)

We're here to help:

Easy ways to get the answers you need.

share with :
  • egg collection system
  • egg collect machine
  • egg collection machine
Main Products
COMPREHENSIVE FARMING SOLUTION
CHICKEN FARMING EQUIPMENT
PIG FARMING EQUIPMENT
SHEEP FARMING EQUIPMENT
CATTLE FARMING EQUIPMENT
FISH FARMING EQUIPMENT
SPECIAL FARMING EQUIPMENT
OTHER FARMING EQUIPMENT
FEED ADDITIVE PRODUCTS
VETERINARY ULTRASOUND MACHINE
Contact Us
  • Contact: Rita Li
  • Tel: +86 371 5517 0327
  • Phone: +86-18103835136
  • Email: jinhuizonghe@zzjhny.com
  • Add:Modern agricultural research&development base of Henan Province,China.
  • Specifications
  • Technical Data
  • Inquiry
  • Video
■ Specifications
►Introduction of the automatic egg collection system:

The automatic egg collecting equipment including imported equipment ,pick up the egg plant, soft broken egg filtration system, egg and egg belt drive system, the egg front-end collection system, the power distribution and others. The composition of the large automatic egg collecting system, including more than one set of eggs as described in the automatic equipment and transportation equipment, referred to the egg delivery conveyor includes rods, sprocket, transmission chain, and then the egg tray; described in more automatic egg collecting equipment along the conveyor direction of movement of the transmission chain transmission device placed above one or both sides.

►Features of the automatic egg collection system:


1.Automatic collecting
2.Labor saving
3.High efficiency
4.Low egg breakage rate
5.Simple structure, steady performance
6.Durability and reliability
7.Normally used for 4-8 tier layer cages

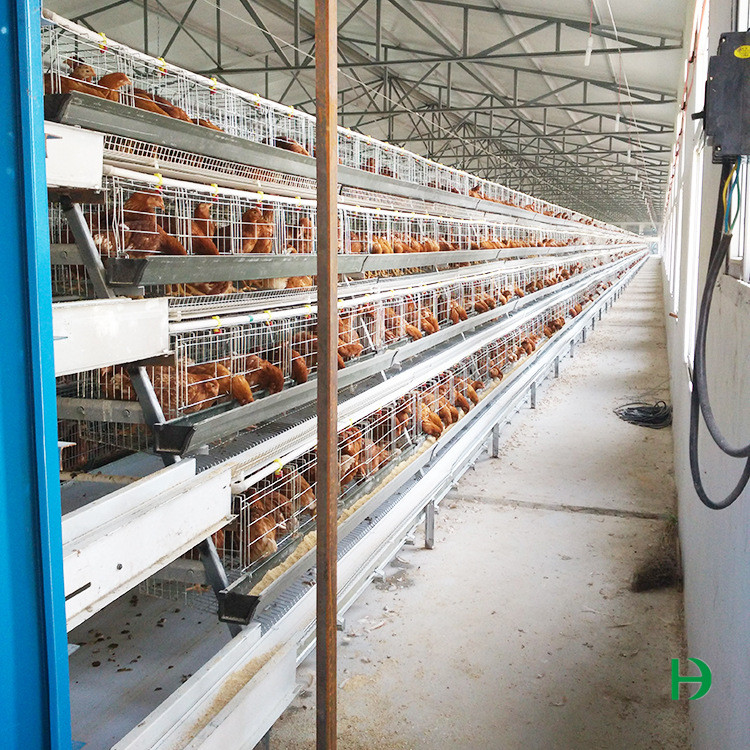

►Pictures show






■ Technical Data
Parameter of the egg collection system:

No Items Unit Specifications
1 Rated Power kw 0.75~3.0
2 Size(L×W×H) m (2.2~2.8)×(1.0~1.5)×(2.0~2.6)
3 Belt Working Speed mm 1~3
4 Egg Broken Rate % ≤1
5 Working Type / 3/4 tiers working together
6 Paint Thickness mm ≥0.05
7 Machine Weight kg 700
8 Rated Voltage v 380
9 Source Type / AC,3-Phase Source





Product formation of the automatic egg collection system:

1).The foundation is made of high steel: the chassis is designed by engineers have many years of experience in structural design, reasonable structure, has a large carrying capacity, structural deformation ect.

2).The egg upload system: eggs upload system by the taransmission effciency gear speed reduce drive, drive lossless. low failure rate, long use life,low noise,reduce the noise influence on chicken.

3).The egg filtration system: eggs transmission system of the filtering system use chain prevent the soft transit broken egg after mucous to upload system, prevent pollution finished eggs.

4). Set the egg belt and belt drive system: set eggs by the transmission efficiency of hollow worm gear speed reducer drive, thus ensuring the eggs of conveyor belt running smoothly. Drive roller is made of high quality rubber, increase the friction with the conveyor belt.

5). Eggs front-end collection system: the main purpose is to collect eggs from the upload system. Ensure the egg rolling speed is not appropriate allows the retention phenomenon of eggs produced.

6). The power distribution system: power distribution system is to use national standard electric appliances, professional electrical engineers design.. Save manpower, facilitate management. Can also be designed according to user needs all kinds of electrical control system.
