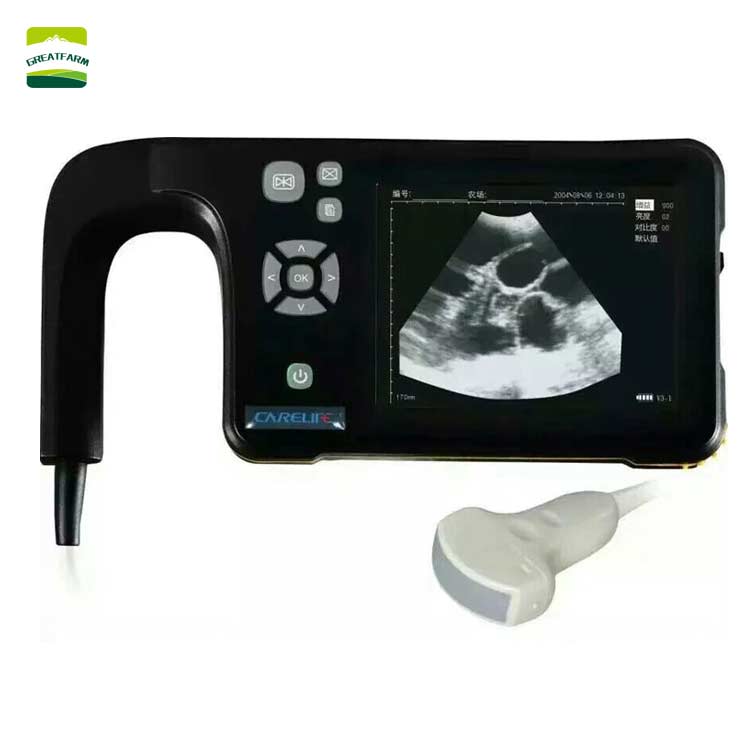

5 Inch High Definition LCD Screen Waterproof Small Ultrasound Machine

  • Brand Name: GREAT FARM
  • Screen size: 5 inch
  • Accessories: 1 Probe+4 battery+1 charger
  • Body memory: 8GB
  • Suitable for: pig, cattle, sheep, cat, dog

We're here to help:

Easy ways to get the answers you need.

share with :
  • Portable Veterinary Ultrasound
  • Veterinary Ultrasound For Sale
  • Veterinary Ultrasound for animal
  • Specifications
  • Technical Data
  • Inquiry
■ Specifications
1. This machine only have one convex probe ,and this is best machine for pig;
2. Excellent control of body weight, the total weight (including battery) no more than 900g, more portable handheld work;
3. Good shell reinforcement design ,the products can adapt to the farm and wild and rugged working environment;
4. Excellent display technology, which can adapt to both the weak light and bright light image display performance.
■ Technical Data
Display mode

   B, B+B

Scanning mode

 Electronic convex array

Detection depth

≥140mm

Dead zone

≤3 mm

Resolution  Horizontal

≤2 mm(Depth≤80mm

Vertical

≤1mm(Depth≤80mm)

Geometric location accuracy Horizontal

≤10%

Vertical

≤5%

Battery working time

≥2 hours

Weight

 900g(battery include)

Screen size

5-inch

Working frequency

2.5MHz~5MHz

Image gray-scal

256 levels

Scanning line number

 512 lines/frame

Digital scanning conversion

512×512×8 bits

Memory capacity

≥2GBConventional

Battery capacity

3000mAH/7.4V

Size

 240mmx117mmx40mm

Scanning range


 Convex array 50

Amplification factor

1.0, 1.2, 1.5,2.0
