Pig Farrowing Equipment

Material:: stainless steel and PP plastic
Accessories:: feeder, drinker, warm box etc
Usage:: pig rearing
Application:: pig breeding equipment

We're here to help:

Easy ways to get the answers you need.

share with :

Main Products

TOTAL FARMING SOLUTIONS

CHICKEN FARMING EQUIPMENT

PIG FARMING EQUIPMENT

SHEEP FARMING EQUIPMENT

CATTLE FARMING EQUIPMENT

VETERINARY ULTRASOUND MACHINE

Need Help?

or Email us:

danong@great-farm.com

Hot Products

Contact: Rita Li
Tel: +86 371 5517 0327
Phone: +86 181 3782 2989
Email: danong@great-farm.com
Add:Modern agricultural research&development base of Henan Province,China.

Specifications
Technical Data
Inquiry

■ Specifications

1.Pig farrowing crates is used for sows during pregnancy. It reduces the abortion rate by reasonable restriction of moving space and also makes it easy and efficient for feeding.

2. Pig farrow gestation crates provides the safe and comfortable environment for the sows for childbirth and breeding.Also important is to improve the survival rate of piglets. At the same time, farrowing crate has a great influence on the lactation and energy recovery of the sows.

3.Pig farrowing crates is used for sows during pregnancy. It reduces the abortion rate by reasonable restriction of moving space and also makes it easy and efficient for feeding.

Different Type Introduction

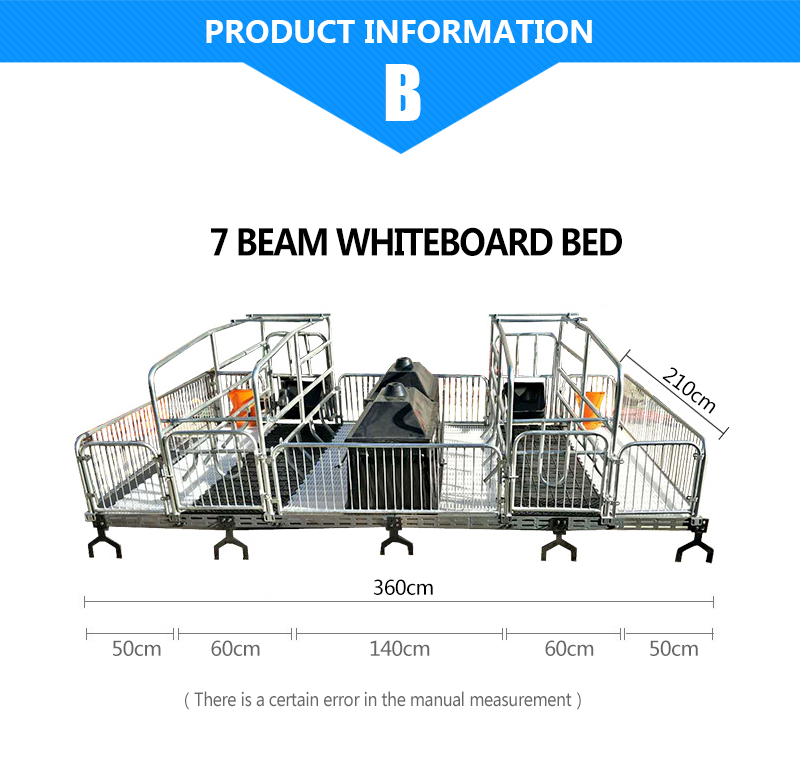

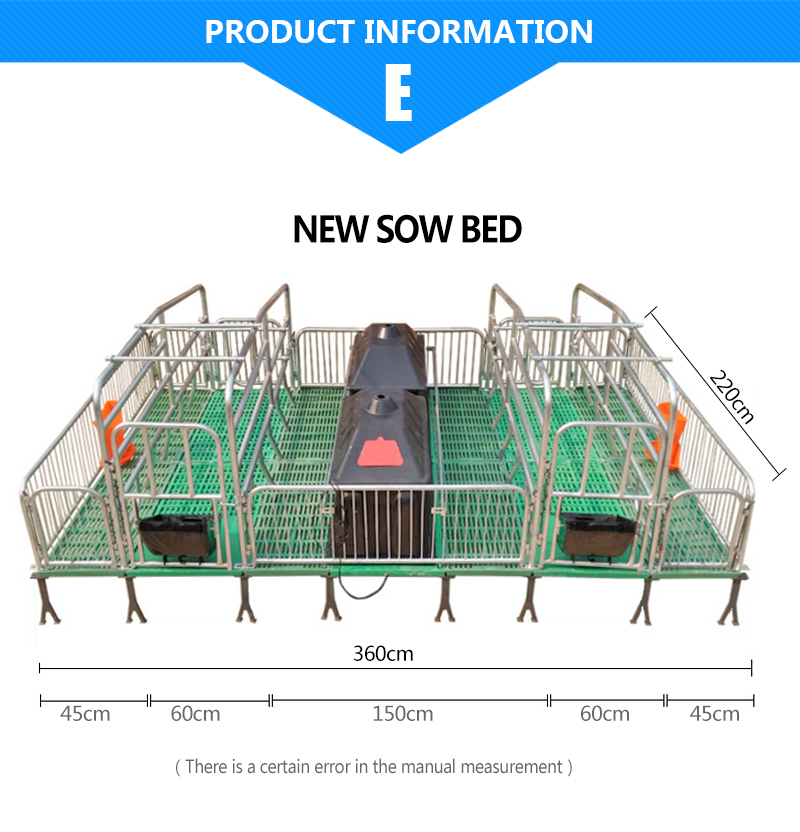

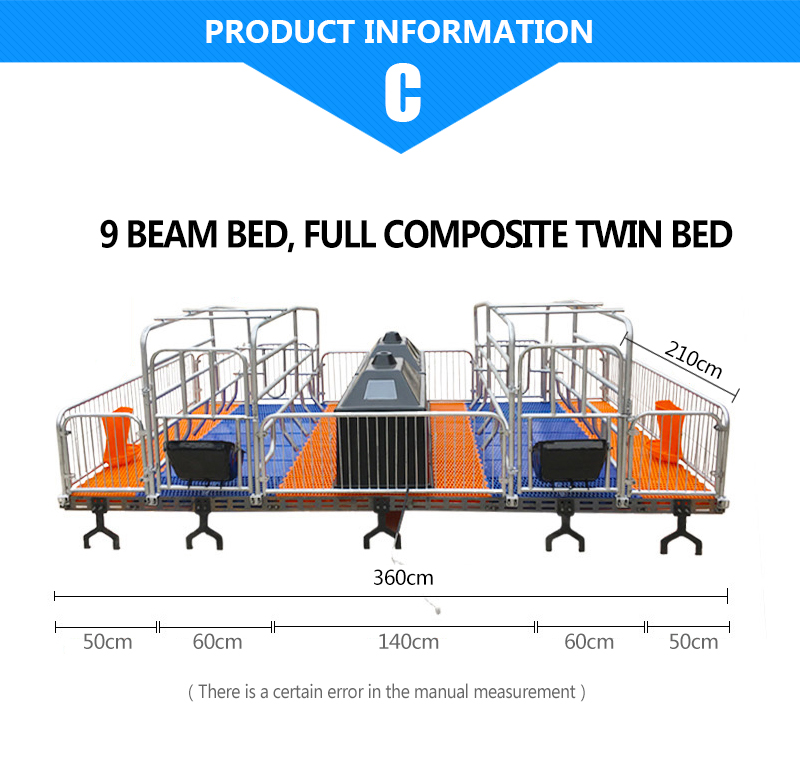

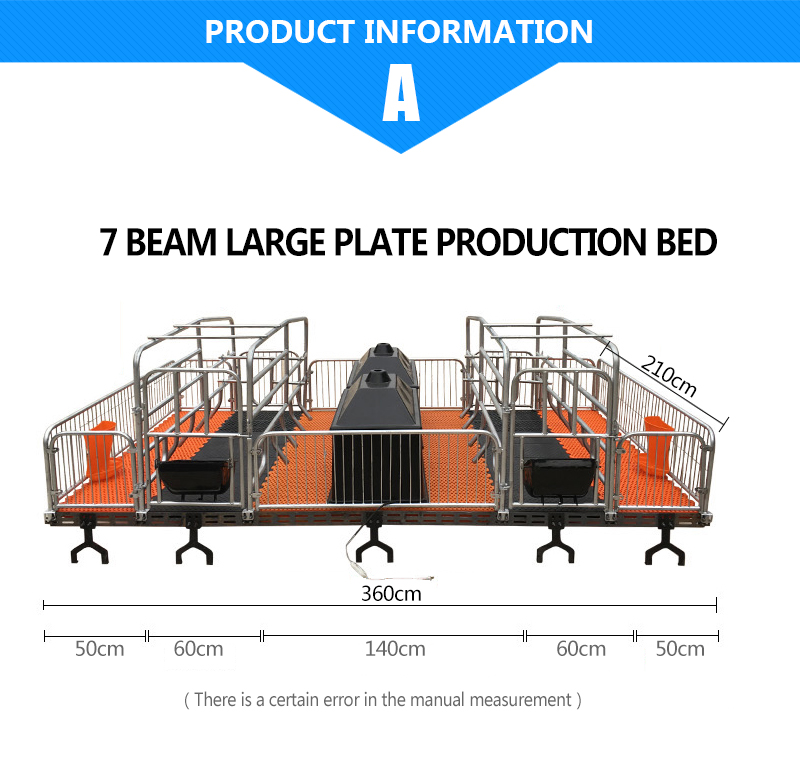

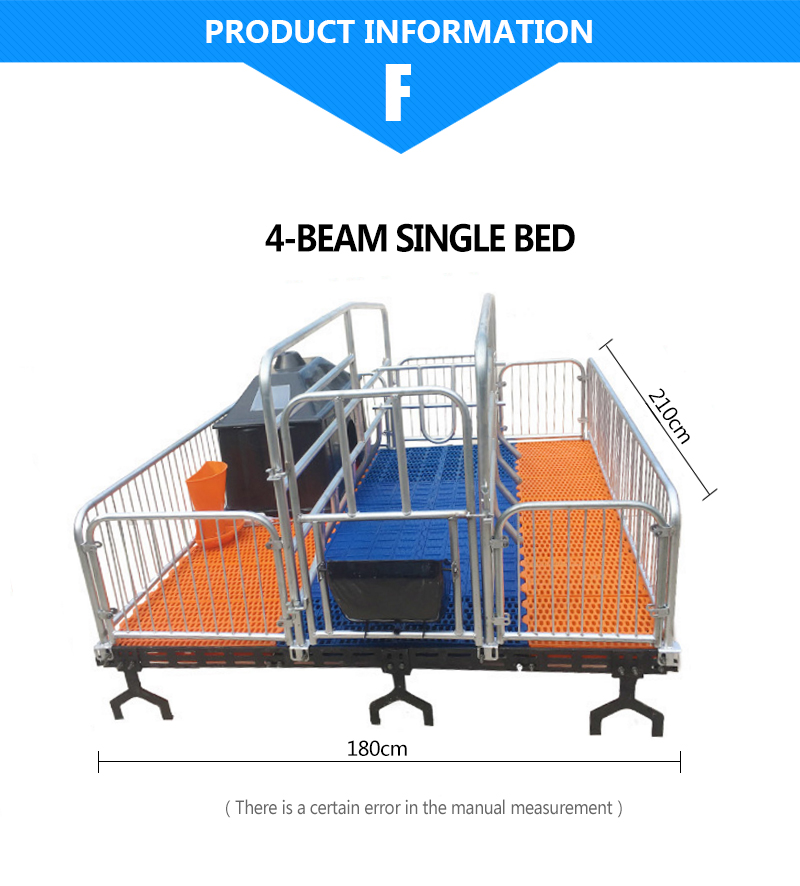

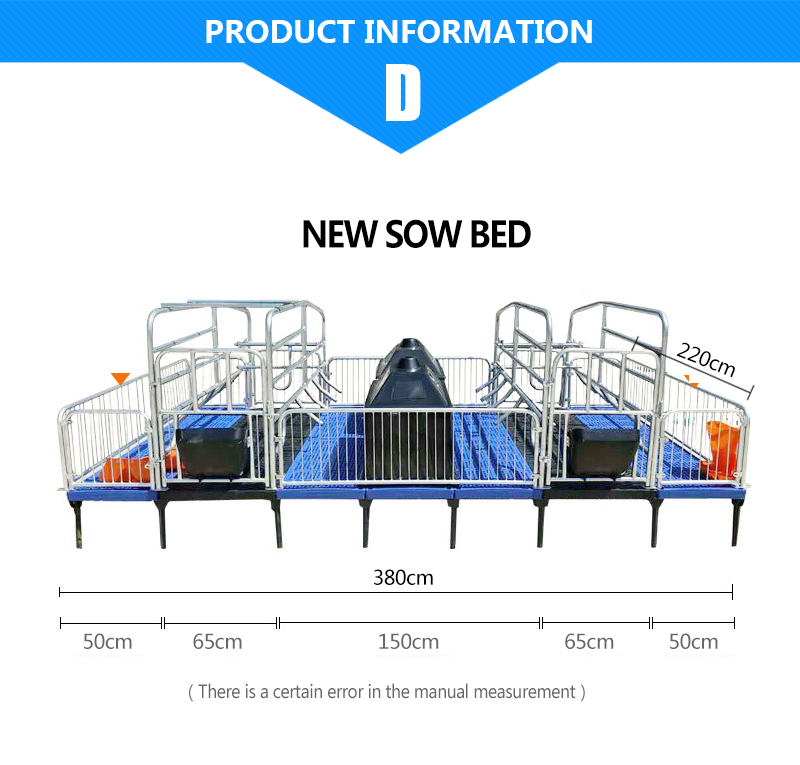

Sow Gestation Bed Galvanized Pig Farrowing Crates Pen Pig Flooring Stall Farrowing Bed Sow Equipment for sale

* Type : sow farrowing cate

* Overall size: 3.6m*2.1m*1m or 1.8*2.1*1m

* Material :

(1) Crate: 2mm hot dip galvanized tube

(2) Floor : platic floor for piglet + cast iron floor for sow

(3) Piglet warming box : PVC /Plastic /Fiberglass

(4) Sow feeder : Cast iron / stainless steel

(5) Piglet feeder : plastic

(6) Drinker :Stainless steel

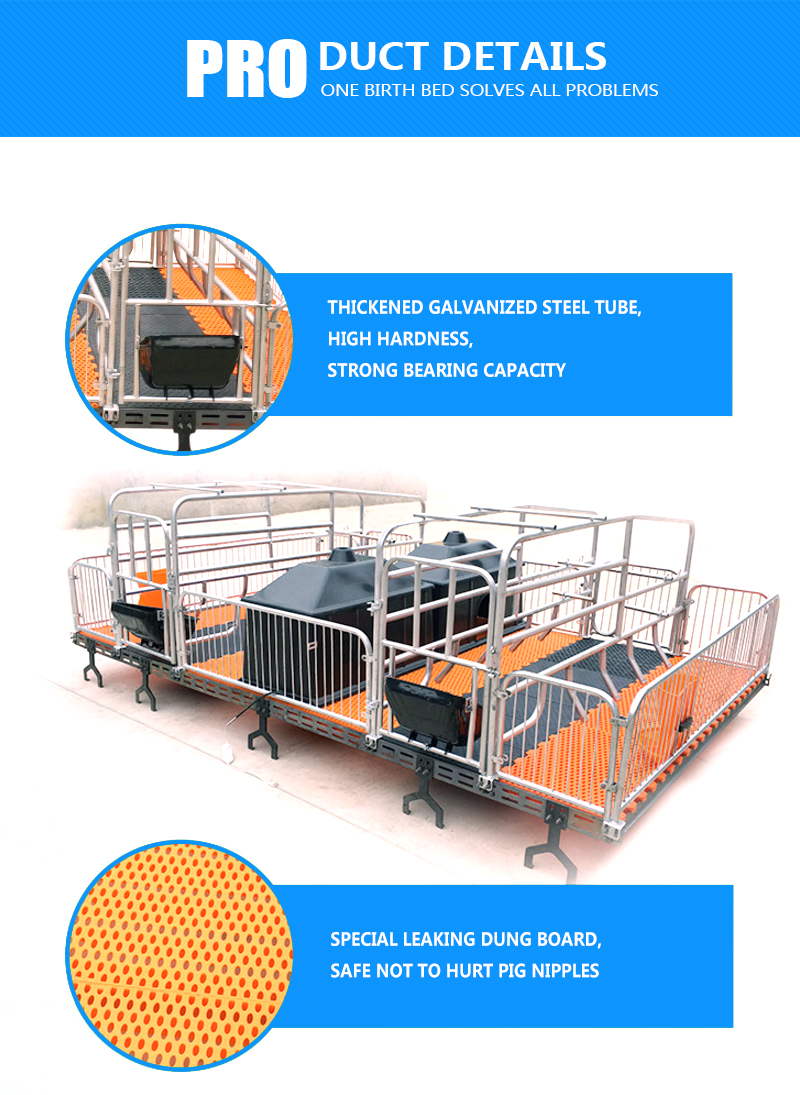

Thickened Galvanized Steel Tube

High Hardness

Strong BearingCpacity

Special Leaking Dung Board

Safe Not To Hurt Pig Nipples

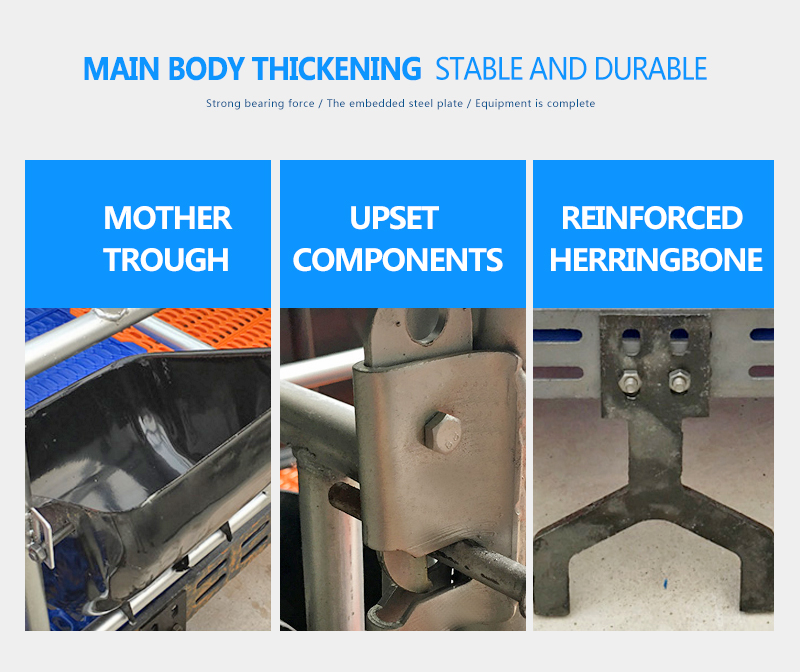

MAIN BODY THICHENING STABLE AND DURABLE:

MOTHER TROUGH

UPSET COMPONENTS

REINFORCED HERRINGBONE

Related Product

■ Technical Data

Item	Pig Farrowing Equipment
Dimension	1.82.4m 1.6m2.4m
Crate	1)φ32*2.5mm round pipe,both side space can be adjusted, width can be adjusted according to sow body and litter size,anti-stress bar can avoid sow stress piglet,back door can be opened fully to be convenient sow go in and come out; (2)free space at back door arranged for piglet; (3)pen can be leaned according to installation condition to adjust piglet activity area



Fence	PVC board,
	thickness :30mm or 35mm,
	Height:500mm or 600mm,
	3kg/m;
Flooring	plastic piglet slat:
	(1)high strength,non-slip,no water stored,durable,no harmful to feet;
	(2)PP8030 fresh material to guarantee durable,anti-corrosion and anti-corrosion;
	(3)200kg weight load per bar,500kg weight load per slat;
	steel sow slat:
	(1)non-fracture;
	(2)anti-corrosion and anti-oxidation'
	(3)remove surface glitch;
	(4)back steel slat with one manure hole.
Drinker	Stainless steel Nipple drinker for both sow and piglets and Stainless steel drinking bowl
Heating	Warming house with heating floor or heating lamp
Features	Standard robot arms production, easy adjust and assemble
Feed trough	304 stainless steel sow trough, 304 stainless steel piglet trough,trough dimension:Ø253*66mm;fastened with slat
Heating:	fiberglass insulation cover,infrared heating light(150w),
	(1)heat adjustable;
	(2) vapor glass material,high ma-chemical thermal strength,can stand sudden cooling and water sputtering,anti-explosion led by water steam cooling, can control energy radiation precisely;
	(3)insulation is in center, fastener by clamp,produced by high precision line.
