Waterline front end Dosing device

  • Usage:: water
  • Flow Rate:: 0.2-5m3/h
  • Temperature:: 4-30°
  • Dilution Range:: 0.2%-2%
  • Size:: 32mm/25mm

We're here to help:

Easy ways to get the answers you need.

share with :
  • Waterline front end Dosing device
  • Waterline front end Dosing device
  • Waterline front end Dosing device
  • Waterline front end Dosing device
  • Waterline front end Dosing device
Main Products
TOTAL FARMING SOLUTIONS
CHICKEN FARMING EQUIPMENT
PIG FARMING EQUIPMENT
SHEEP FARMING EQUIPMENT
CATTLE FARMING EQUIPMENT
VETERINARY ULTRASOUND MACHINE
Contact Us
  • Contact: Rita Li
  • Tel: +86 371 5517 0327
  • Phone: +86 181 3782 2989
  • Email: danong@great-farm.com
  • Add:Modern agricultural research&development base of Henan Province,China.
  • Whatsapp: +86 18137822989
  • Specifications
  • Technical Data
  • Inquiry
■ Specifications
Proportional Irrigation fertilizer doser pump Livestock Medicator dosing injector

1.Do not rely on electricity but on hydraulic drive, adding a concentrated dose accurately.
2. Dilution variety of liquid and water-soluble materials easy to operate, easy to maintain;
3.Easy to adjust and Carry; separable external regulator; changing ratio.
Application: fertilizer irrigation, equipment maintenance, horticultural flowers, livestock farming, environmental protection and water treatment, industrial hygiene, vehicle cleaning, food processing, the printing industry or other industries that require a fixed dilution.


Be Applied to:
1.-Can be connected in series or in parallel multiple ingredients.
2.-Can regulate the concentration, better precision control.
3.-Can be used as Fertilization pump; This hydraulic system itself can be
usedto join the system in proportion precise liquid or gaseous media,
widely used in horticulture, irrigation, plant protection, water treatment,
fire protection, animal husbandry, health, food, chemicals, machinery,
construction, and other industrial area.
4.-Can applied as pump fertilizers, pharmaceuticals, various additives, you can
achieve spraying, fertilizing, disinfecting, insecticidal, bactericidal, antiseptic,
changing fluid properties and many other purposes.


Bullet Points:
1、Working Principle: The fertilizer injector views flow pressure water as the power, the water pressure loss is small, and no other power facilities are needed. In an emergency, it can dispense drugs quickly and save efforts.
2、Important Parameters: The fertilizer injector features 0.4%-4% (1:25-1:250), and its working pressure is 0.3-6 bar (about4.35-87 psi), and its flow range is 20-2500L / h (4.4-660.43 gallons / h).
3、Fine Craft: The fertilizer injector features the reciprocating dynamic sealing technology with higher precision. The unique cylinder block and piston motion area are designed to ensure a more even and efficient mixing of liquids and chemicals.
4、Wide Applications: The fertilizer injector is suitable for fertilizer irrigation, equipment maintenance, horticultural flowers,animal husbandry, environmental protection and water treatment, industrial hygiene, vehicle cleaning, food processing, drinking water industry or other industries that require a certain dilution.
5、Multiple Sizes: The size range of diameter of the injector is 25-32mm/0.98-1.26in(about), which will meet your needs.

■ Technical Data
Product Available
0.2%-2%(1:500-1:50)
0.4%-4%(1:250-1:25)
1%-5%(1:100-1:20)
1%-10%(1:100-1:10)
0.2%-1%(1:500-1:100)
0.5%-5%(1:200-1:20)
Work with:100-120 mesh Filter device
Power:Non-power Dosing Device

Specifications:
Name: Blue Automatic Fertilizer Injector
Proportion range: 0.4-4%
Flow range: 20L/h-2500L/h
Working water pressure: 0.2-3bar

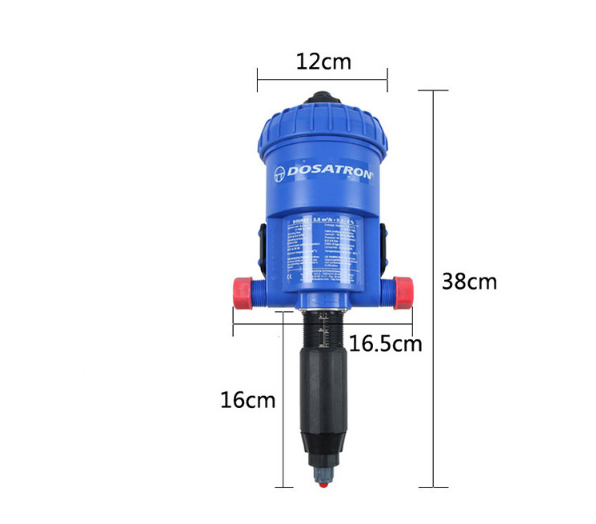

Inlet and outlet diameter(about): 32mm/1.26in, 25mm/0.98in
Water flow temperature: 4-30 ° C
Product packaging: carton packaging
waterline front end Dosing device
