 Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat
Name:Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat
Features:
1. Wrist design, multiple patents in one, smart and light, convenient for carrying, easier for examining patients at home.
2. 5.7" high resolution color LCD, high brightness, high contrast, wide visual, image clear and exquisite.
3. Menu operation,Language: Chinese/English.
4. 100 frames permanent storage, 256 frames cine loop.
5. Eight pseudo colors (incl.B/W).

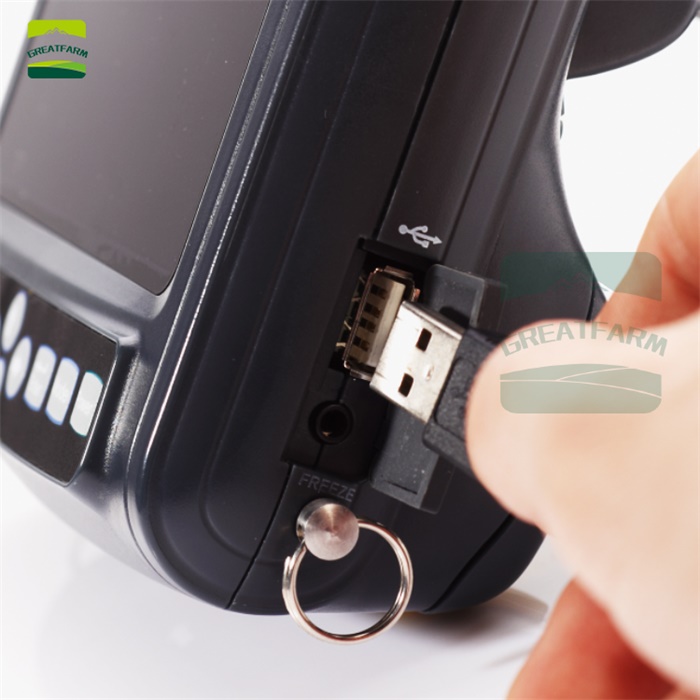

6. High speed USB port support high-capacity U disk, and support the color laser printer print out all kinds of images and reports which make the output of diagnosis more convenient and simple.
7. Dual-mode TV output:PAL/NTSC, connecting to video recorder and ultrasonic working station.
8. Optional mouse to operate easier.
9. Freeze or unfreeze image by shutter release.
10 Adopted AC and DC to supply power, equipped with two pcs of high-capacity lithium batteries which can make machine work more than 200 minutes.
11. Have obstetric reporting function.
12. USB interface supports large-capacity U disk (supports file management, software upgrade and one-key storage function), and can support color laser printer to directly print various pictures and reports, making the diagnosis output more convenient and simple;
13. Dual system TV output: PAL/NTSC, which can be connected to video recorders and ultrasound workstations;

Primary Functions:
1. Mode conversion function.
2. Magnification conversion function.
3. Frequency conversion function.
4. Frame correlation function.
5. Image post-process function.
6. Edge enhancement function.
7. Image freeze/unfreeze.
8. Depth range selection function.
9. Depth heighten/pan function.
10. Color display function.
11. Local zooming.
12. Angle/width change.
13. Image filter function
14. Adjustment and display of near field, far field, total gain and dynamic range.
15. Single-point, multi-point focusing.
16. Image storage.
17. Vertical, horizontal reverse and B/W conversion.
18. Case information, image annotation and auto time display.
19. Body marks.
20. Measurement of distance, fat thickness, circumference, area, volume, slope, heart rate and cycle.
21. OB software package including 27 tables about 8 kinds of animals, automatic calculation of GA and EDC.
22. Puncture guide.
23. Cine loop.
24. PAL-NTSC Conversion.
25. Energy saving.
26. Chinese-English Switch.
27. Obstetric report.


NOTE: 1. Purchase 1 set veterinary ultrasound machine, our store will give 10 pcs long arm veterinary gloves  +power adapter plug used in the customer's country as gifts.

            2. Because the goods ship from China to foreign countries cannot contain liquids, so we will empty the couplant in the white bottle before delivery. After receiving the goods, customers can use soybean oil or castor oil, olive oil or detergent instead of the couplant.Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat
1. Gray scale: 256
2. Monitor: 5.7” LCD
3. Adapter ratings: 100-240V~, 50-60Hz, 70VA (model: BJE01-40-001M)
4. Output of adapter: DC12V 3.0A
5. Main device rating: DC12V 3.0A
6. Main Unit Size: approx. 155 * 180 * 80mm3 (L * W * H)
7. Weight of main unit: approx. 1.1kg (excluding accessories)
Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat



Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat



The probe in the above picture is suitable for dogs and cats.

 Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat



The probe in the above picture is suitable for pigs and sheep

 Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat



The probe in the above picture is suitable for cattles, horse and camel.

Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat



Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat



Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat



Best clearest waterproof ultrasound Scanner machine For Cattle Horse Pig Dog Cat
